Repairing Stick Drift With TMR/Hall Effect – PS5 DualSense Controller

Repairing Stick Drift With TMR/Hall Effect – PS5 DualSense Controller

PS5 DualSense · Repair & upgrade

Take back
control.

Is your character or camera moving without you touching the joystick? We fix stick drift on your PS5 controller and upgrade it with Hall Effect or TMR joysticks.

Desoldering of the old joystick, soldering of the new one, calibration, and functional testing – we handle the entire job.

Joystick repair on a PS5 DualSense controller
200+

Over 200 PS5 controllers repaired

We have now passed 200 repaired PS5 controllers – experience we bring to every single repair.

An upgrade that addresses wear

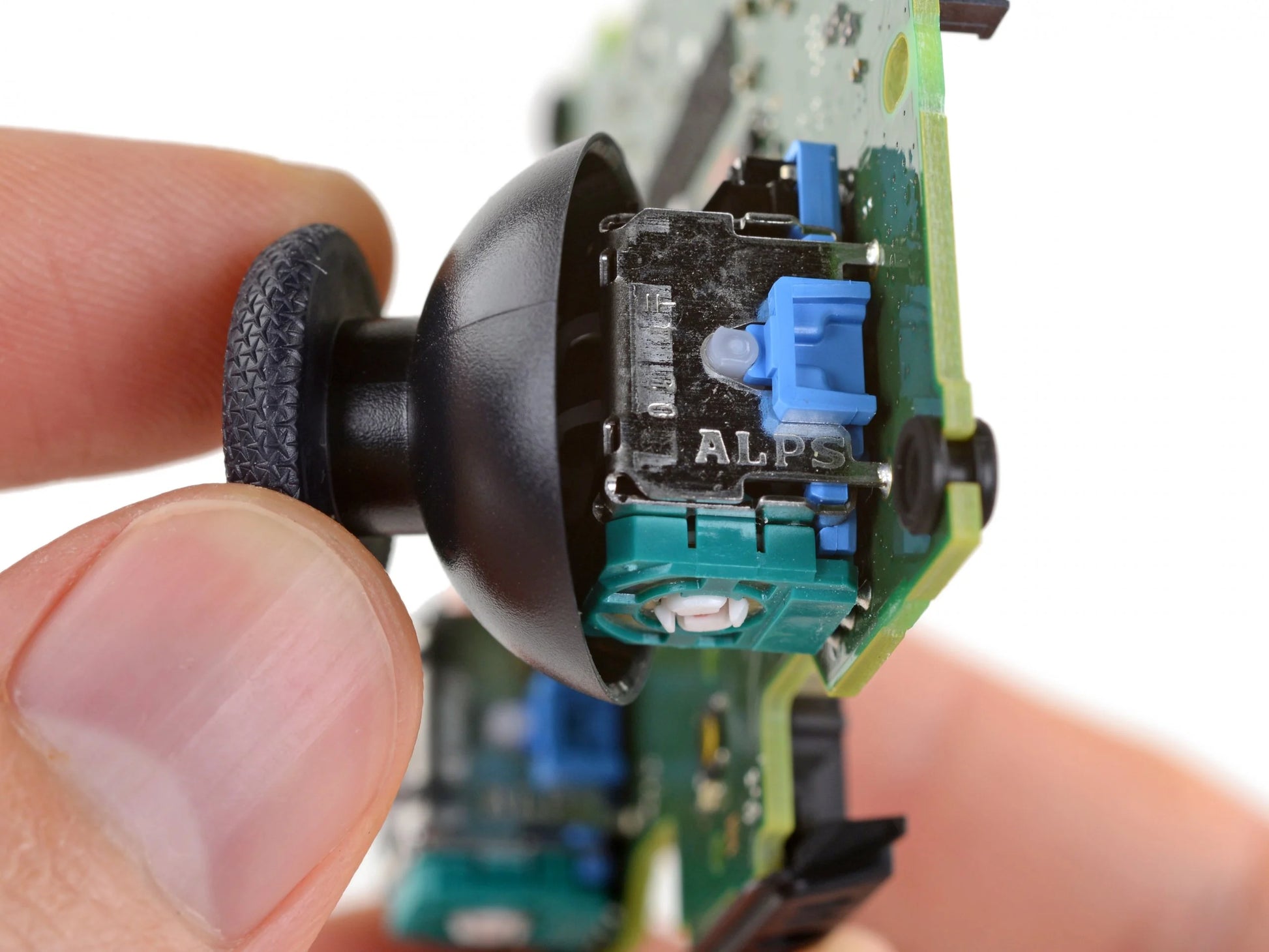

The original joysticks use potentiometers with contact surfaces that can wear out over time. This can cause the controller to register movements even when the stick is at rest. Hall Effect and TMR use contactless, magnetic sensing and avoid this type of wear in the sensor itself.

Contactless sensing

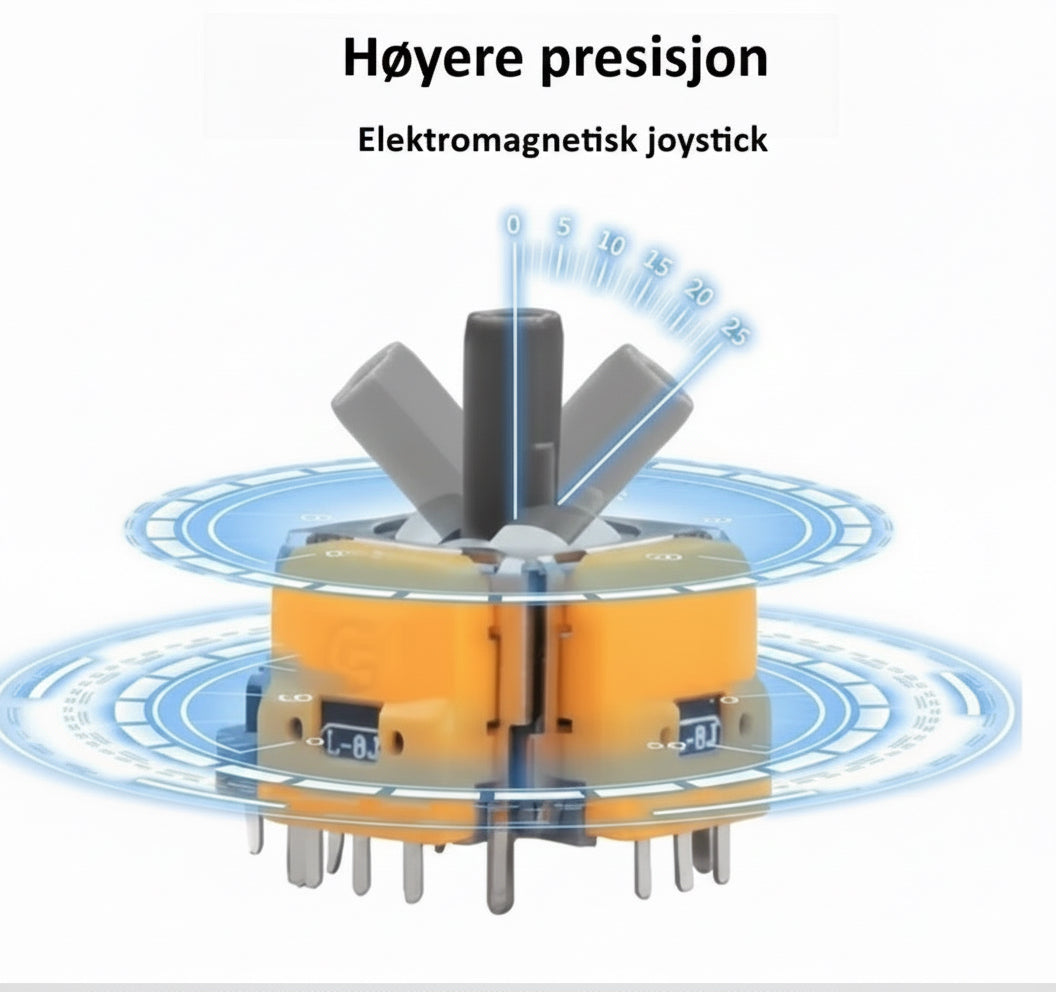

Hall Effect

Registers the joystick's position using magnets and Hall sensors. An upgrade that eliminates the need for the electrical contact surfaces that wear out in traditional potentiometers.

  • Magnetic movement registration
  • No wear on potentiometer tracks
  • Installed, calibrated, and tested by us
High sensor sensitivity

TMR

Uses Tunnel Magnetoresistance to register changes in the magnetic field. The technology has high sensitivity and is suitable for accurate reading of the joystick's position.

  • Contactless, magnetic sensor technology
  • Sensitive reading of small position changes
  • Installed, calibrated, and tested by us

Proper installation and calibration mean a lot. Both technologies avoid wear on the sensor's contact surfaces. Mechanical parts can still wear, and precision also depends on the module, controller, and calibration.

Included in the service

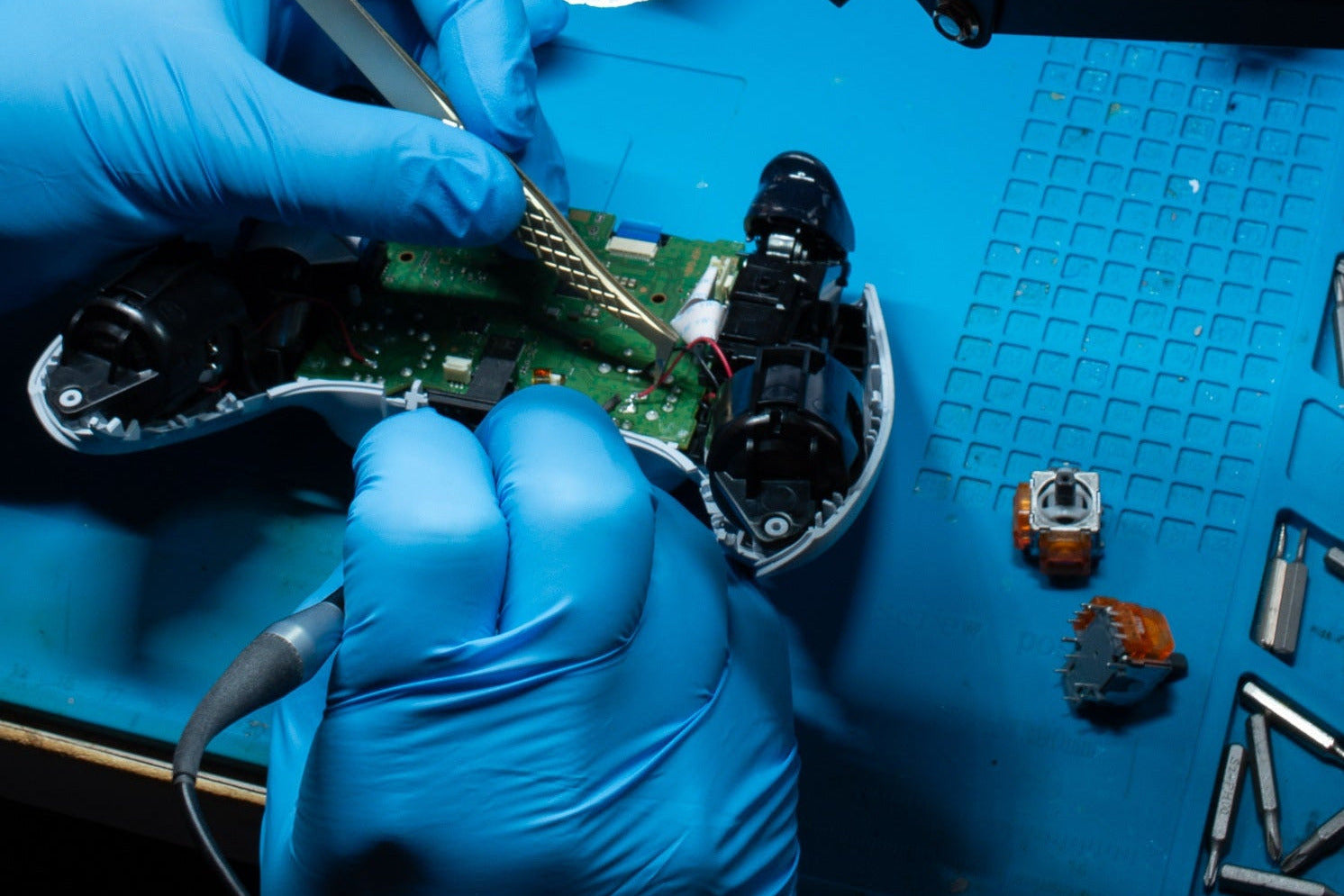

We start by examining the stick drift and disassembling the controller. Then we perform the repair in this order:

  1. Desoldering the old joystick

    We desolder and remove the original joystick module to be replaced.

  2. Soldering the new joystick

    We mount and solder in the new Hall Effect or TMR module, according to the option you have ordered.

  3. Calibration

    Once the new joystick is soldered in place, we calibrate the centering and range of motion – Stick Center and Stick Range – using specialized software.

  4. Functional test before delivery

    After calibration, we test the controller in several games and with DriftAline.

Ready to take back control?

Select your preferred option on the product page. If you are unsure what fits your controller, we are happy to help you before you order.

Specifications

Compatibility: PlayStation 5 DualSense controllers, DualSense Edge, Scuf Reflex
Repair type: Stick drift repair / joystick replacement / Upgrade
Upgrade: K-SILVER J13 PRO TMR joysticks
Sensor type: TMR (Tunnel Magnetoresistance)
Contactless technology without traditional potentiometers
Full function test of both analog sticks
Test of buttons, triggers, and connectivity included
6-month warranty on work performed included
Calibration after installation included
Processing time: Usually 1–3 business days

Shipping & Returns

For services such as repair, modding, or upgrades:

After ordering, you will automatically receive an email with the submission address and necessary information. You order and pay for shipping to us yourself. When the work is completed, we will arrange and pay for the return shipping back to you. We automatically receive your name, address, and other necessary information from the order.

For finished products:

If you order accessories, pre-modded consoles, refurbished products, or other items that do not require submission, you don't need to do anything extra. The product will be shipped directly to you as usual, typically within 1–2 business days.

Frequently asked questions

-What is stick drift?

Stick drift occurs when your controller registers movement on the analog stick even when you're not touching it. This can cause the camera or character to move on its own in games.

-What is K-SILVER J13 PRO TMR?

K-SILVER J13 PRO TMR is a modern joystick technology that uses magnetic sensors instead of traditional potentiometers. This provides higher precision, better durability, and significantly reduced risk of future stick drift.

-Is TMR better than original DualSense sticks?

Yes. TMR sticks have fewer wear parts and are far more resistant to wear and tear than the original joysticks that Sony uses in DualSense controllers.

-Do you replace one or both joysticks?

You can choose to have one or both joysticks replaced. Many people choose to replace both at the same time for a consistent feel and maximum lifespan.

-Do the joysticks need to be calibrated after replacement?

Yes. We calibrate the joysticks after installation to ensure a correct center point, high precision, and optimal performance.

-Do all games work normally after the upgrade?

Yes. The controller functions like a regular DualSense controller and is fully compatible with all PS5 games and features.

-Will I lose data or settings?

No. The repair does not affect user settings, profiles, or other data.

-How long does the repair take?

Standard processing time is 1–3 business days after we receive the controller.

-What do I need to send in?

Only the controller itself. Cables, charging station, and other accessories are normally not necessary.

-Does the repair have a warranty?

Yes, we provide a 6-month warranty on the work performed and the components installed.

Important Information

The reason special controllers (Scuf Reflex, Edge, etc.) cost more is because there is a lot more work involved. The Scuf Reflex has many more solder points and fragile flex cables. For the DualSense Edge, you have to solder on an extra wire to bypass the software lock, allowing it to be calibrated.

The "Both Joysticks" option applies to both joysticks on the same controller.

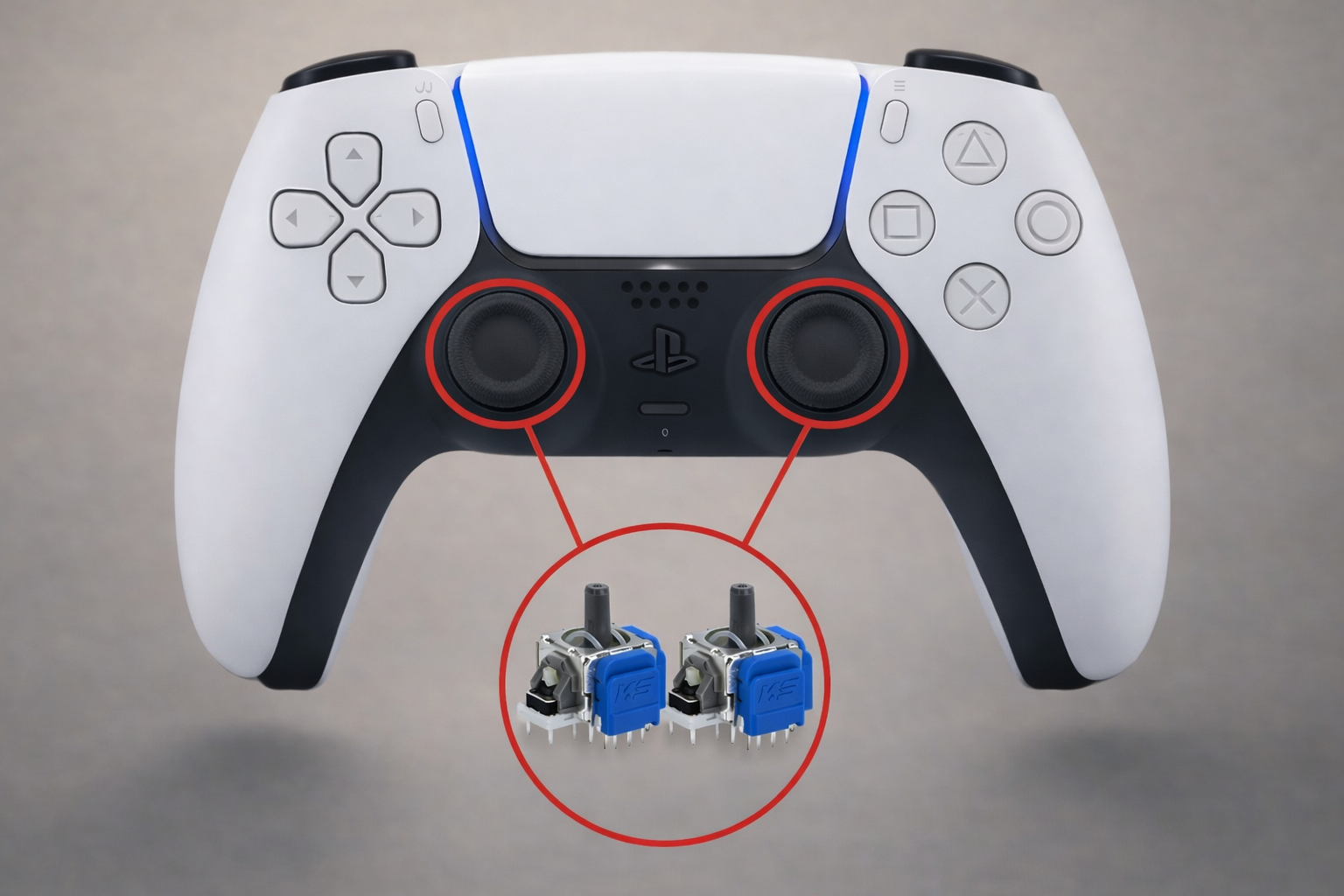

Change 1 or both Joysticks? With Hall Effect or TMR?
Is it a regular DualSense or a special controller? (DualSense Edge, Scuf Reflex, etc.)
Add Deep Cleaning?
